Documentation

Guide

How to use Chalkboard, from creating your first video to customizing every detail. For terminal workflows, see the CLI reference.

Getting started

Quick start

Prerequisites: Python 3.10+, Docker, and ffmpeg.

Install

git clone https://github.com/nicglazkov/Chalkboard.git
cd Chalkboard
pip install -r requirements.txt
cp .env.example .env  # add your ANTHROPIC_API_KEY

Start the web UI

python run_server.py
# Open http://localhost:8000

First run only: Docker builds the render image automatically (~30 seconds). Subsequent runs use the cached image.

API keys: ANTHROPIC_API_KEY is required. Kokoro TTS is free and runs locally, so no extra key is needed. If you prefer OpenAI voices, add OPENAI_API_KEY to your .env file. See TTS backends for all options.

Web UI

Creating a video

Open http://localhost:8000 after starting the server. The form has three main fields and a collapsible Advanced section. Hit Generate to start. The pipeline runs in the background, so you can close the tab and come back later.

Main

Field Options Description
Topic Free text What you want explained, e.g. "how B-trees work"
Effort low, medium, high Validation depth and whether web research runs. See effort levels.
Audience beginner, intermediate, expert Controls vocabulary, pacing, and assumed background knowledge.

Advanced

Field Default Description
Tone casual Narration style: casual, formal, or socratic.
Theme chalkboard Visual color palette. See themes.
Template none Animation layout for specific content types. See templates.
Speed 1.0 Narration speed multiplier.
File uploads none Drag-and-drop zone for local files as source material. See file uploads.
URLs none Web pages to fetch and use as source material.
GitHub none Repositories to pull README from as context.
QA density normal How many frames Claude inspects after rendering: zero, normal, high.
Burn captions off Hardcode subtitles into the video. SRT file is always generated regardless.
Generate quiz off Produce comprehension questions as a JSON file.

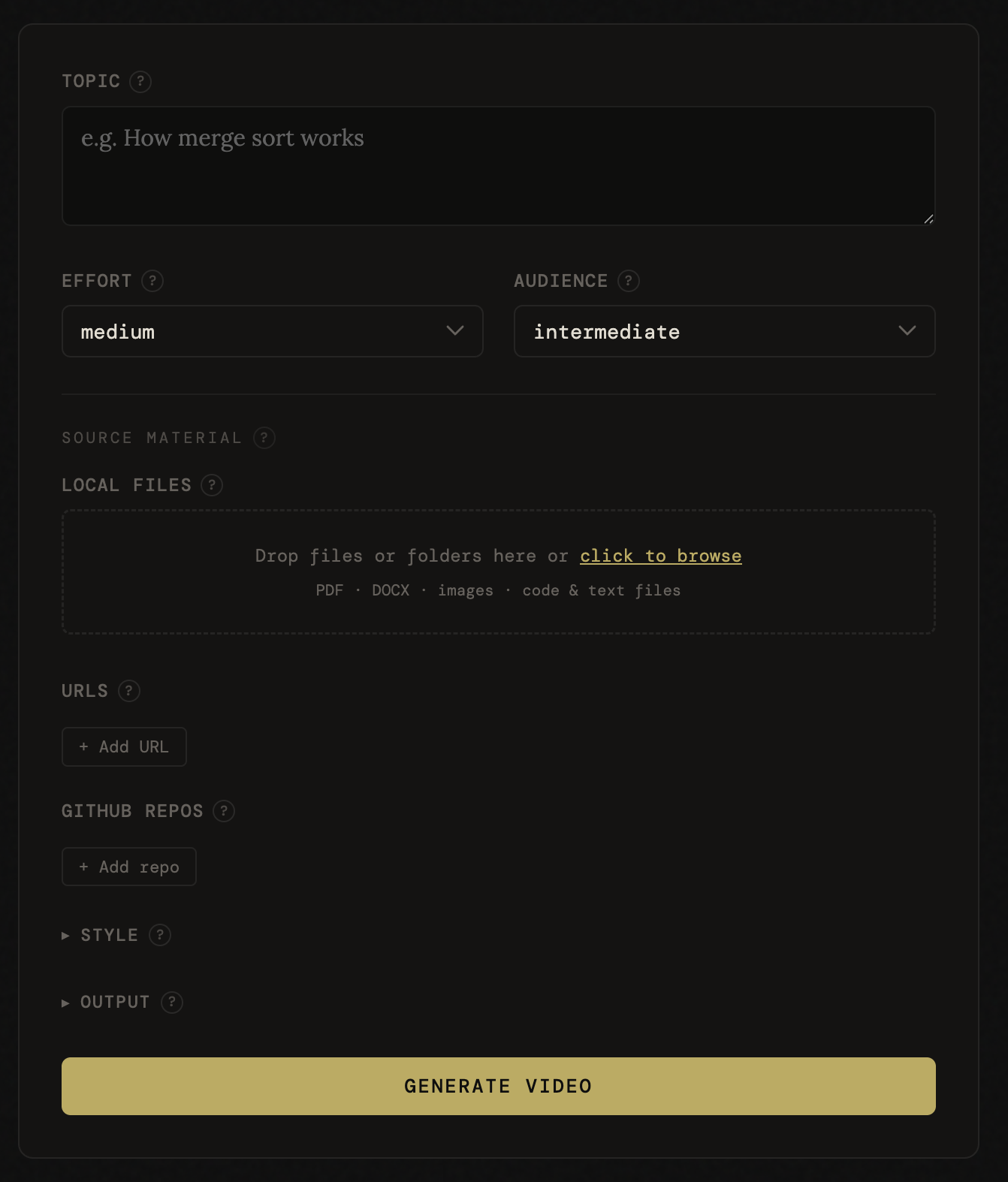

The job creation form

The job creation form.

Web UI

Live progress

Once a job starts, the UI switches to a stage-by-stage progress view driven by server-sent events (SSE). Each pipeline stage lights up as it completes:

  1. Research: web search for source material (high effort only)
  2. Script: Claude writes the narration
  3. Fact check: Claude reviews the script for accuracy
  4. Animation: Claude generates Manim scene code
  5. Code review: syntax check and semantic review of the animation
  6. Layout check: headless dry-run validating bounding boxes and timing
  7. Render: Docker renders the animation, TTS generates audio, ffmpeg merges them

Each stage retries automatically (up to 3 attempts) if validation fails. Feedback from the validator is fed back to the generator so it can correct the issue.

When the job finishes, a video player appears inline with download links for the MP4, captions, script, and quiz (if enabled).

Pipeline stages completing in real time (timelapse).

Web UI

Video library

Navigate to /library or click Library in the header to browse all generated videos.

  • Grid view with thumbnails extracted from each video
  • Search by topic or title to find specific videos
  • Video detail page with inline player, metadata, and download links
  • Delete videos from the context menu on each card

Old runs created before the library existed are automatically backfilled at startup. Any directory in output/ with both manifest.json and final.mp4 is indexed.

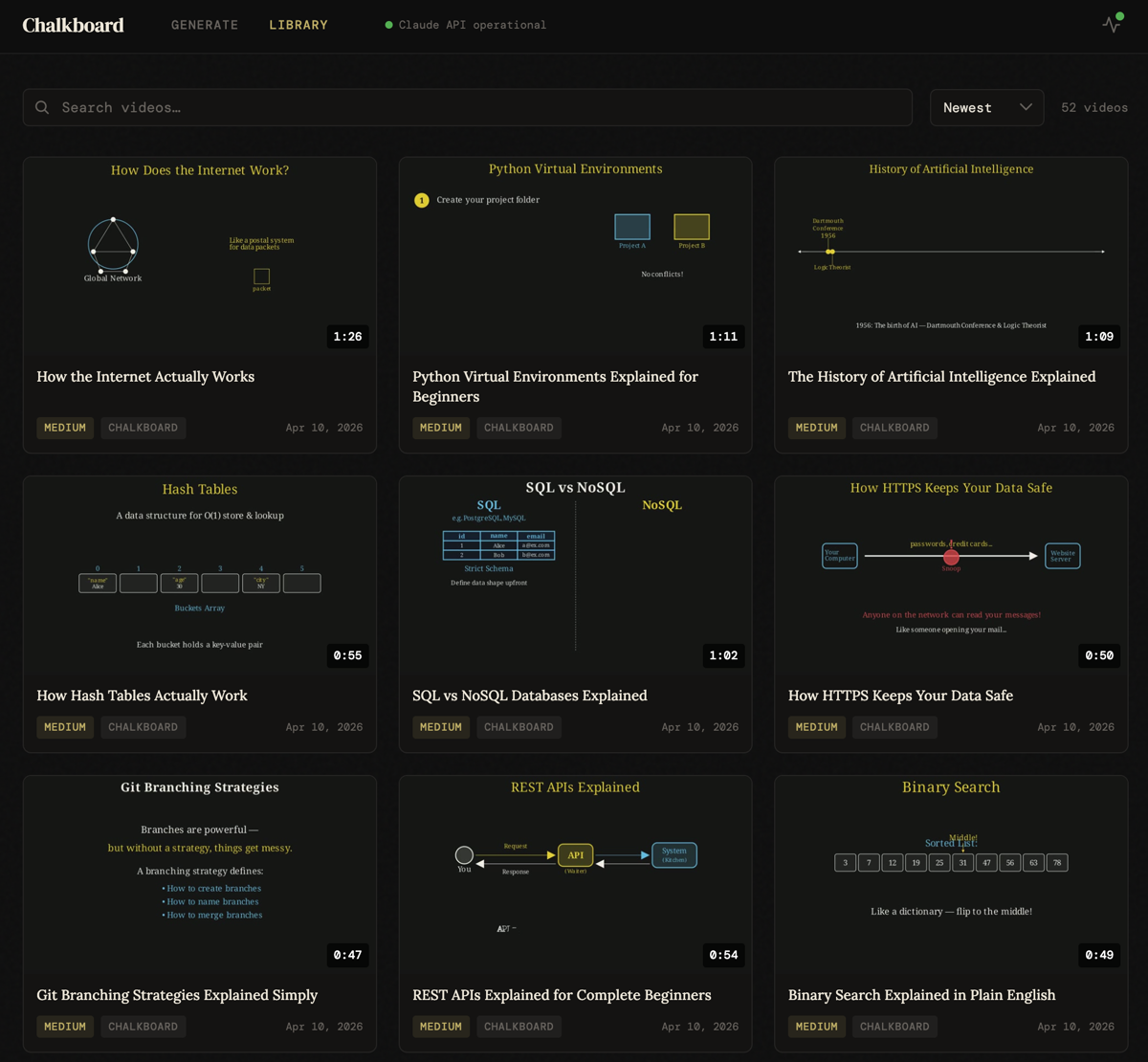

Video library grid showing generated videos

The video library with search and thumbnail grid.

Source material

File uploads

The Advanced options panel includes a drag-and-drop upload zone. Drop individual files or entire folders to use them as source material. The pipeline will build the animation from your content rather than Claude's training data alone.

Supported file types: text and code files (.py, .js, .md, .yaml, and many more), images (.png, .jpg, .webp, .gif), PDFs, and Word documents (.docx).

Size limits

File type Max size
Text / code 2 MB
Images 5 MB
PDFs 20 MB
DOCX 10 MB
Total (all files) 24 MB

You can also paste URLs and GitHub repos in the Advanced options panel. These are fetched server-side and injected as context alongside uploaded files. For CLI context injection (local directories, glob exclusions, token reporting), see the CLI reference.

Animation

Templates

Templates inject layout and visual convention guidance into the animation generator, producing more structured results for specific content types. Select a template in the Advanced options panel, or omit it to let the AI choose freely.

algorithm

Sorting & searching

Array cells, pointer arrows, step counter, and explicit swap animations. Best for sorting, searching, and graph traversal.

code

Code walkthroughs

Manim Code object, incremental line reveal, callout annotations. Best for implementation explainers.

compare

A vs B trade-offs

Two labeled columns, consistent color per side, summary row at end. Best for technology comparisons.

howto

Step-by-step guides

Numbered steps revealed progressively, active step highlighted, completed steps dimmed. Best for setup guides, recipes, and processes.

timeline

Chronological events

Horizontal axis with dated markers animated left to right. Best for history, version timelines, and biographical sequences.

Quality

Effort levels

The Effort setting controls how thorough the validation pipeline is and whether web research runs before scripting.

Level Fact-check Web search Segments
low Light check, obvious errors only Never 3-4
medium Spot-check key claims No 4-6
high Thorough Dedicated research step before scripting 5-8

With high effort, a dedicated research agent runs web searches before the script is written. Sources found are cited in the terminal output. If the search fails or results are clearly off-topic, Chalkboard prints a warning and continues on training data. The pipeline never aborts because of a search failure.

Quality checks

Two automatic quality checks run on every video, regardless of effort level.

pre-render

Layout check

Dry-runs the scene headlessly inside Docker and validates every segment's bounding boxes (off-screen, colliding elements) and animation timing against the audio budget. Violations are fed back to the animation generator and retried automatically.

post-render

Visual QA

Samples frames from the rendered video and asks Claude to flag overlapping text, off-screen content, or readability issues. Errors trigger scene regeneration and re-render (up to 2 attempts). Control sampling density in Advanced options.

Voiceover

TTS backends

Set TTS_BACKEND in your .env file. The .env.example ships with openai, which works on all platforms. The code default when unset is kokoro.

Backend Quality Cost Requires
kokoro Best Free PyTorch ≥ 2.4, espeak-ng
openai Great API OPENAI_API_KEY
elevenlabs Great API pip install elevenlabs, ELEVENLABS_API_KEY

Intel Mac users: PyTorch 2.4+ has no x86_64 macOS wheels. Use openai or elevenlabs instead.

To install espeak-ng for Kokoro: brew install espeak-ng (macOS) or apt install espeak-ng (Linux).

Visual style

Themes

Themes control the color palette of the rendered animation. Select a theme in the web UI form or pass --theme on the CLI.

chalkboard

Chalkboard

Dark green background with chalk-white text and warm accent colors. The default theme, inspired by classroom blackboards.

light

Light

Clean white background with dark text and blue accents. Good for professional presentations and bright environments.

colorful

Colorful

Dark background with vibrant, high-contrast colors. Best for eye-catching social media content and visual variety.
